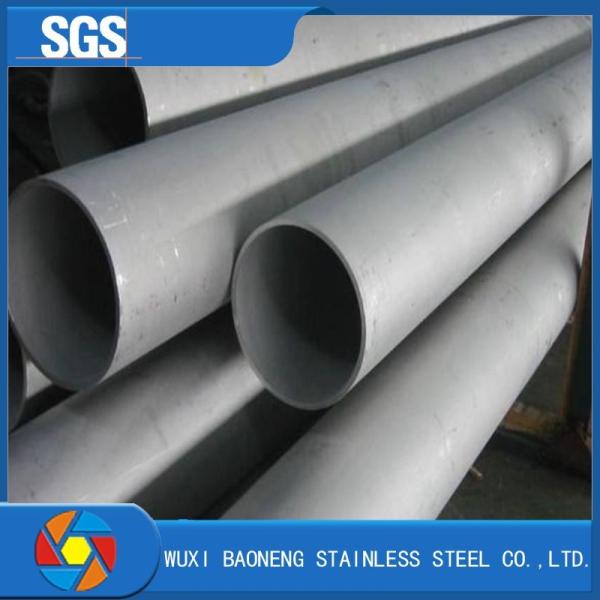

    6000-12000mm High Quality ASTM 304 Round Stainless Steel Pipe

    Ask Lasest Price
    Brand Name : TISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
    Model Number : 309S welded stainless steel pipe
    Certification : mill certificate
    Price : negothiable
    Payment Terms : L/C, T/T
    Supply Ability : 2000T PER MONTH OR MORE
    Delivery Time : 15-20 days after deposit
    • Product Details
    • Company Profile

    6000-12000mm High Quality ASTM 304 Round Stainless Steel Pipe

    309S welded stainless steel pipe


    309S stainless steel is a low carbon version of 309. Because of its lower carbon-content, 309S minimizes carbide precipitation, and improves weldability. It can be easily roll formed, stamped and drawn. Other key properties of 309S include good weldability and machinability, outstanding resistance to oxidation. 309S is utilized by many different industries for a number of critical applications including:oven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts and so on.

    ElementType 309S (Wt.%)

    Carbon: 0.08 max

    Manganese: 2.00 max.

    Phosphorus: 0.045 max.

    Sulfur: 0.030 max.

    Silicon: 1.00 max.

    Chromium: 22.00-24.00

    Nickel: 12.00-15.00


    Element (Wt.%)

    CarbonManganesephosphorusSulfurSiliconChromiumNickel
    0.08max2.00max0.045max0.030max1.00max22.00-24.0012.00-15.00

    Mechanical Property

    Material ItemTensile Strength (MPa)Yield Strength (MPa)ExtensionHardness (HV)Density
    309S≥520≥205≥40%≤2007.98g/cm³

    Hot rolled

    Commodity309S hot rolled stainless steel sheet
    BrandTISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
    Thickness3mm-30mm, or as customized
    Width1500mm/1800mm/2000mm, or as customized
    Length2000mm/2438mm/6000mm, or as customized
    Applicationoven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts, etc
    Delivery Time

    Within 15 days for less than 100mt

    About 30 days for on and more than 100mt

    Price TermsFOB/ CFR/ CIF
    PackageStandard Export Packaging

    Cold rolled

    Commodity309S cold rolled stainless steel sheet
    BrandTISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
    Thickness0.3mm-6mm
    Width1000mm/1220mm/1500mm/2000mm, or as customized
    Length2000mm/2438mm/6000mm, or as customized
    Surface2B/ BA/ No.4/ 8K/ HL
    Applicationoven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts, etc
    Delivery Time

    Within 15 days for less than 100mt

    About 30 days for on and more than 100mt

    Price TermsFOB/ CFR/ CIF
    PackageStandard Export Packaging

    Surface Treatment

    Surface TreatmentDefinitionApplication
    NO.1A hot - rolled piece whose surface has been treated by heat treatment, pickling or the corresponding processChemical Tanks, Pipes, Chemical Industry Equipment etc.
    2BAfter cold rolling, heat treatment, pickling or other equivalent treatment, the final cold rolling to give appropriate lusterMedical Equipment, Food Industry, Construction Material, Kitchen Utensils etc.
    BAAfter cold rolling, bright heat treatment is givenKitchen Utensils, Electric Equipment, Building Construction etc.
    NO.4Products polished with abrasives 150 to 180 as specified in JIS R6001Kitchen Utensils, Building Construction, Medical Equipment etc.
    HLAfter polishing, use the appropriate abrasive size to form a continuous polishing streakBuilding Construction etc.
    8KA mirror-like reflective surface given by polishing with finer abrasives over 800 meshReflector, Mirror, Interior and exterior decoration etc.

    PIPE

    Commodity309S seamless/welded stainless steel pipe
    Grade309S
    OD6mm-426mm, or as customized
    WT1mm-30mm, or as customized
    Length5m-7m, or as customized
    SurfacePickling, matt, polished, mirror
    ApplicationPetroleum, heat exchanger, chemical industry, fluid transportation, constructions, etc.
    Delivery Time7-30 days, according to quantity
    Price TermsFOB/ CFR/ CIF
    PackageIn bundles, water proof packing, in wooden case, or as per customers’ requirement

    COIL

    Commodity309S hot rolled/cold rolled stainless steel coil
    BrandTISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
    SurfaceNo.1/ 2B/ BA/ No.4/ 8K/ HL
    Thickness0.3mm-16mm
    Width1000mm-2000mm, or as customized
    Lengthas customized
    Applicationoven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts, etc
    Delivery TimeNormally within 15 days, according to the quantity
    Price TermsFOB/ CFR/ CIF
    PackageStandard Export Packaging

    Bar

    Commodity309S stainless steel round bar
    Diameter1mm-800mm
    Length6m, or as customized
    SurfaceBright, pickled, black
    ApplicationConstruction field, shipbuilding industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchange, machinery hardware fields
    Delivery Time7-30 days, according to quantity
    Price TermsFOB/ CFR/ CIF
    PackageExport standard package, or as per customers’ requirement

    STRIP

    Commodity309S stainless steel strip
    BrandTISCO, ZPSS, BAOSTEEL, POSCO, JISCO, LISCO, etc
    SurfaceNo.1/ 2B/ BA/ No.4/ 8K/ HL
    Thickness0.02mm-5mm
    Width15mm-600mm
    Lengthas customized
    Applicationoven Linings, boiler baffles, firebox sheets, furnace components, most high temperature containers, aircraft and jet engine parts, etc
    Delivery TimeNormally within 15 days, according to the quantity
    Price TermsFOB/ CFR/ CIF
    PackageStandard Export Packaging

    Quality 6000-12000mm High Quality ASTM 304 Round Stainless Steel Pipe for sale
